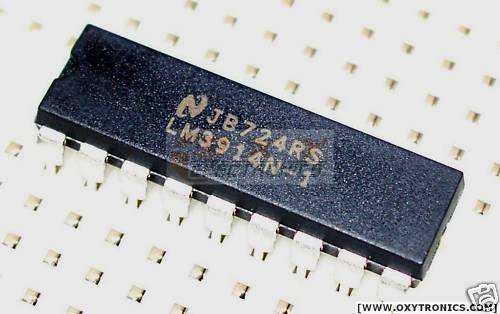

1 pcs LM3914 DIP-18 Dot/Bargraph LED Display Driver NEW
More than 10 available
Details
Shipping: US-Mainland: $2.00 (more destinations)
Condition: Brand new
Description:
QTY = 1 pcs
NOTE: YOU WILL RECEIVE 1 pcs OF THE LM3914 LED DRIVER.
NOTE 2: If you plan to buy more than ONE pcs, please check our store for quantity listings or contact us.
Main Features:
· IC Contains NO LEAD (NO Pb)
· Drives LEDs, LCDs or vacuum fluorescents.
· Bar or dot display mode externally selectable by user.
· Expandable to displays of 100 steps.
· Internal voltage reference from 1.2V to 12V.
· Operates with single supply of less than 3V.
· Inputs operate down to ground.
· Output current programmable from 2 mA to 30 mA.
· No multiplex switching or interaction between outputs.
· Input withstands ±35V without damage or false outputs.
· LED driver outputs are current regulated,
open-collectors.
· Outputs can interface with TTL or CMOS logic.
· The internal 10-step divider is floating and can be
referenced to a wide range of voltages.
The LM3914N-1 is an LED Display driver that can drive up to 100 LEDs in Dot Mode or Bar Mode. The current that flows through the LEDs is regulated and programmable, thus, resistors do not need to be implemented. With the elimination of resistors, the whole IC can be operated with less than 3V. The LM3914N-1 (or just LM3914) offers a wide gallery of applications such as:
· 0V to 5V Bar-Graph Meter.
· Cascading LM314s in Dot Mode to produce more LED outputs.
· Zero-Center Meter for 20 Segment Bargraph.
· Expanded Scale Meter Dot Mode or Bar-Graph Mode
· 20 Segment Meter with mode switch ...
· Please refer to the DATA SHEET for more details.
